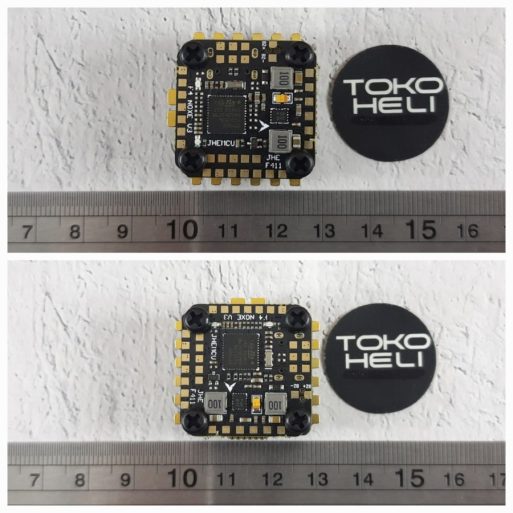

NOXE F4 V3 Flight Controller:
Brand: JHEMCU
Model: F4 NOXE V3
Main control (MCU): STM32F411CEU6/100 MHz
Sensor: BMI 270/Gyro/Accel
Video Overlay (OSD): AT7456E
Barometer (Baro): Yes
Black Box (Black Box): 16MB
Input voltage: Input voltage: 2S-6S (7.4V-26V)
5V-BEC: 5V/2.5A ± 0.1V
10V-BEC: 10V/2A+0.1V
Receivers (receivers): ELRs (CRSF), TBS (CRSF), SBU, IBU, DS M2, DS MX
HD interface: yes
UART: UART 1, UART 2
LIC: IIC1
LED strip: yes
Buzzer (buzzer): support 5V active
ESC signal (ESC signal): PWM, Oneshot125, Oneshot42, Multishot,
Dail 150, Dail 300, Dail 600
USB: Micro USB
Current terminal] (current port): yes
Voltage sensor (voltage sensor): Yes
Dfu button (dfu button): Yes
Firmware (Firmware): Betaflight_4.3.0 JHEF 411.HEX
Size: 27*27*5mm
Mounting hole: 20*20*3mm
Weight (weight): 4.3g
Note:
The BMI 270 gyroscope only supports 4.3.0 firmware.
Please do not flash the other version firmware.

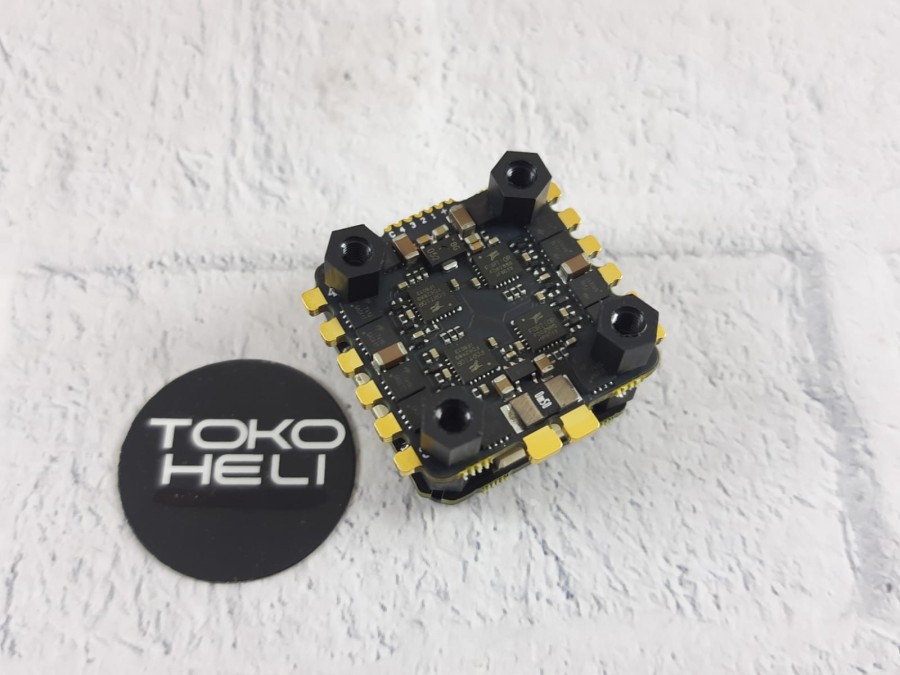

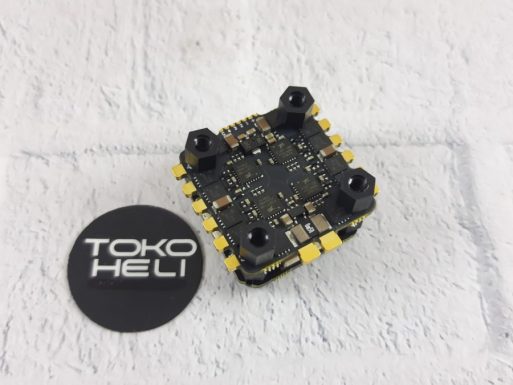

Mini 35A 2-5S 4in1 ESC:
High system integration, greatly reduced than standard size, excellent performance, support 6S,
The target is J-H-25. Support DSHOT, MULTISHOT, ONESHOT, etc.,
The pad is half-expanded, saving space and being durable. feature:
EFM8BB21F16G single chip microcomputer, fast remelting; increase capacitor to reduce power
Noise; electronic stability control system with BLHELI_ firmware
Support 2-5S voltage input, 4PWM input
Compact size 31 * 31MM
Support ONESHOT125, ONESHOT42, MULTISHOT,
DSHOT150, DSHOT300, DSHOT600
Specifications: MCU: EFM8BB21F16G, ammeter: yes input: 2-5S LIPO
Mounting holes: 20X20 MM, M2
Target: J-H-25
Size: 31 * 31MM (including power cushion)
Mounting hole: 20 * 20MM
