The Walksnail Avatar Digital HD FPV Goggles feature high-fidelity Full HD OLED displays and support a new 1080p video transmission protocol in a compact design. These goggles are designed as lightweight mini-size goggles with 46° FOV and focus adjustment with HDMI output.
Note: Shipments after 9/1/2022 include both the new Walksnail Patch Antennas.
Features
Customizable Fit with Optional Faceplate Pad Accessories
Red Bird LHCP 5.8GHz Goggle Antennas
HD Video Output via USB-C Connector
Supports Betaflight Canvas Mode

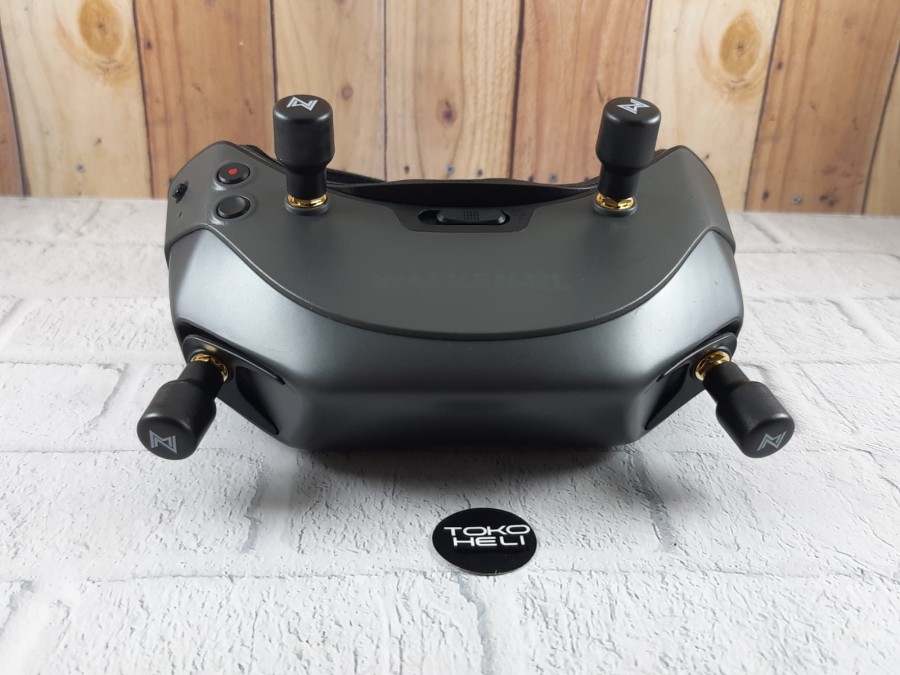

Walksnail Avatar Patch Antennas
Adjustable Anti-Fog Ventilation
On/Off Power Button
Integrated HD DVR
Focus Adjustment
46° FOV
Specifications
AVATAR HD GOGGLES
Transmitter Power: FCC: <30dBm: CE: <14dBm: SRRC: <20dBm: MIC: <25dBm
Micro Displays: Full HD 1080p OLED Dual Micro Displays
Inter-Pupillary Distance (IPD): 57 ~ 70mm (adjustable)
I/O Interface: Type-C, MicroSD Card, DC 5.5×2.1mm
Adjustable Focus Range: +2 to -6 Diopter
Communication Frequency 5.8GHz
IPD Mechanical Range: 28-70mm
Power Input: 6V-25.2V (2S-6S)
Screen Resolution: 1920×1080
IPD Visual Range: 54-74mm
Model: Avatar HD Goggles
SD Card: Supports 256Gb
HDMI Output: Supported
Field of View (FOV): 46°
Screen Size: .49 Inches
